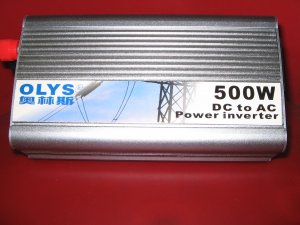

500W DC to AC Power Inverter
MODEL：PI-5012 （500W）
Applying area:
It can be used which the power is less than 500W, like 27" TV, solder gun, singer sewing machine, motor tool etc.
Protection:
Overload protection, High temperature protection, Short circuit protection, Reverse polarity
protection.
Auto re-start function:
When the inverter shuts off once it being in protection, it is not necessary to press the switch (on/off), just moving the high loads, the inverter can restart automatically. So there is no need to place the spare fuse.
ITEM PI5012
Continuous Power 500W
Max power 550W
Peak Power 1000W
Output Wave Modified Sine Wave
Efficiency >91%
Input Voltage DC12V、DC24V
Low Voltage Protection 10.5±0.5V；20V±0.5V
Static Current 500W
High Temperature Protection YES >45°C
Short Circuit Protection YES
Reverse Polarity Protection YES
Auto Re-start Function YES
Dimension 165*87*47 mm
Net Weight 1.35 KG
Carton Meas 46×38×27 cm
Packing Color Box
package 12 PCS /case
G.W./N.W. 18 KG / 15.6 KG
NOTICE:
1. Please make sure that the rated power you use in this unit is less than 500W(for long time use). In this way, the inverter can be used for a long time.
2. Unfold the fuse box, then replace the fuse with the same model.
3. Please make sure to use this unit in draught place and keep it away from high temperature, stress, tide and dust.
